This was first published on https://blog.dbi-services.com/io-performance-predictability-in-the-cloud (2016-04-26)
Republishing here for new followers. The content is related to the the versions available at the publication date
You don’t need good performance only for your system. You need reliable performance. You need performance predictability. In a previous post I’ve measured physical IO performances of the Oracle Cloud Service, with SLOB. And performance is very good. And I continue to run the following SLOB configuration:
UPDATE_PCT=25 RUN_TIME=3600 WORK_LOOP=100000 SCALE=90000M WORK_UNIT=64 REDO_STRESS=LITE LOAD_PARALLEL_DEGREE=4This is physical I/O (I’ve a small buffer cache here) with a fixed workload (the WORK_LOOP). When you do that, you should follow Kevin’s recommandation to set RUN_TIME to an arbitrary high value so that the run stops only at the end of WORK_LOOP. I thought one hour would always be sufficient but you will see that I was wrong.
For days, the performance was constant: 15 minutes to do about 6000 physical reads:

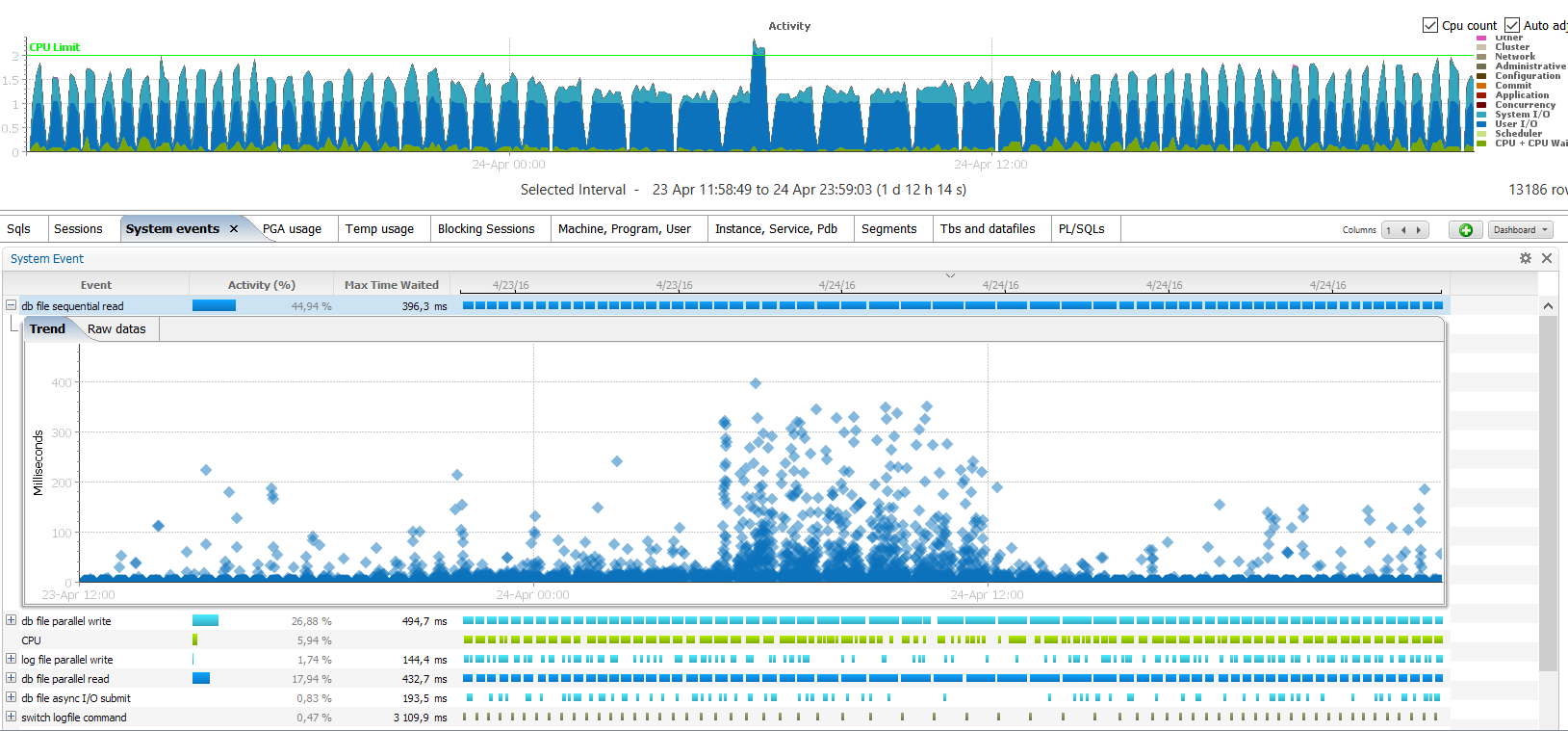

Except that we see something different on last Sunday. Let’s zoom at it (I’m using Orachrome Lighty):
As you see, the run has been longer, starting from April 23rd around 5pm and with the run time increasing. On 24th,from 3am to 10am you don’t see it increasing because it went over the 3600 seconds I’ve set in RUN_TIME. Then it came back to normal after 2pm.
In the lower part, you can see the plots from the Lighty ASH that shows an increase of I/O latency from 5am until noon.

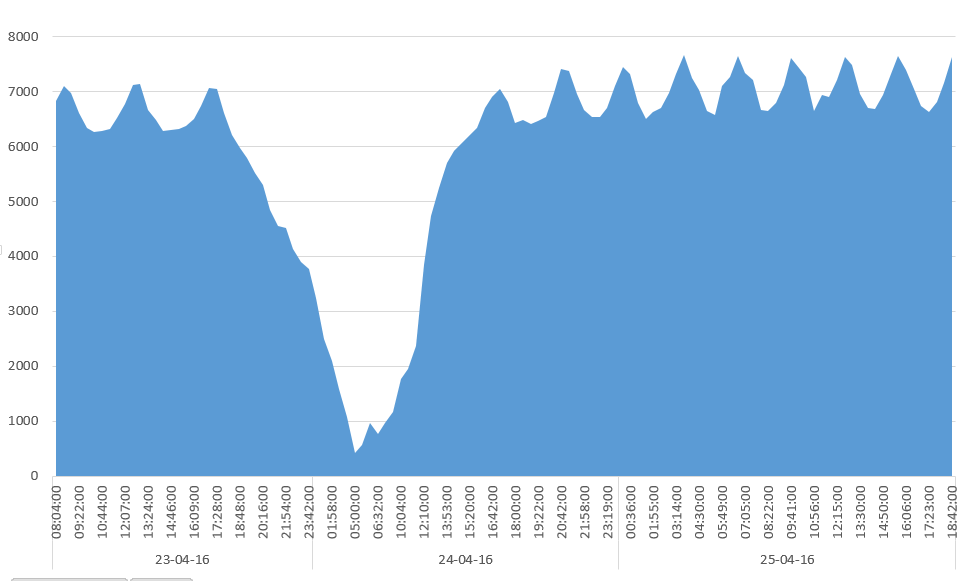

As we don’t see the whole picture because the long run timed out, I extracted the physical reads per second from the AWR shapshots.
Here are the raw values:
SQL> set pagesize 1000 linesize 1000 column begin_interval_time format a17 trunc column end_interval_time format a17 trunc alter session set nls_timestamp_format='dd-mon-yyyy hh24:mi'; select * from ( select begin_interval_time,end_interval_time ,value-lag(value)over(partition by dbid,instance_number,startup_time order by snap_id) physical_reads ,round(((value-lag(value)over(partition by dbid,instance_number,startup_time order by snap_id)) / (cast(end_interval_time as date)-cast(begin_interval_time as date)))/24/60/60) physical_reads_per_sec , 24*60*60*((cast(end_interval_time as date)-cast(begin_interval_time as date))) seconds from dba_hist_sysstat join dba_hist_snapshot using(dbid,instance_number,snap_id) where stat_name='physical reads' ) where physical_reads>0 / BEGIN_INTERVAL_TI END_INTERVAL_TIME PHYSICAL_READS PHYSICAL_READS_PER_SEC SECONDS ----------------- ----------------- -------------- ---------------------- ---------- 23-apr-2016 10:17 23-apr-2016 10:34 6385274 6272 1018 23-apr-2016 10:44 23-apr-2016 11:01 6388349 6282 1017 23-apr-2016 11:12 23-apr-2016 11:29 6385646 6316 1011 23-apr-2016 11:39 23-apr-2016 11:56 6386464 6523 979 23-apr-2016 12:07 23-apr-2016 12:22 6387231 6780 942 23-apr-2016 12:33 23-apr-2016 12:48 6386537 7120 897 23-apr-2016 12:59 23-apr-2016 13:14 6389581 7147 894 23-apr-2016 13:24 23-apr-2016 13:40 6388724 6669 958 23-apr-2016 13:51 23-apr-2016 14:08 6387493 6478 986 23-apr-2016 14:18 23-apr-2016 14:35 6386402 6280 1017 23-apr-2016 14:46 23-apr-2016 15:03 6387153 6293 1015 23-apr-2016 15:14 23-apr-2016 15:30 6386722 6317 1011 23-apr-2016 15:41 23-apr-2016 15:58 6386488 6374 1002 23-apr-2016 16:09 23-apr-2016 16:25 6387662 6505 982 23-apr-2016 16:36 23-apr-2016 16:51 6387735 6745 947 23-apr-2016 17:02 23-apr-2016 17:17 6387303 7066 904 23-apr-2016 17:28 23-apr-2016 17:43 6387304 7042 907 23-apr-2016 17:54 23-apr-2016 18:10 6388075 6620 965 23-apr-2016 18:21 23-apr-2016 18:38 6386803 6219 1027 23-apr-2016 18:48 23-apr-2016 19:06 6387318 5969 1070 23-apr-2016 19:17 23-apr-2016 19:35 6386298 5785 1104 23-apr-2016 19:46 23-apr-2016 20:05 6388856 5517 1158 23-apr-2016 20:16 23-apr-2016 20:36 6387658 5297 1206 23-apr-2016 20:47 23-apr-2016 21:09 6386522 4838 1320 23-apr-2016 21:20 23-apr-2016 21:43 6386627 4555 1402 23-apr-2016 21:54 23-apr-2016 22:17 6387922 4521 1413 23-apr-2016 22:28 23-apr-2016 22:54 6388141 4135 1545 23-apr-2016 23:04 23-apr-2016 23:32 6388043 3905 1636 23-apr-2016 23:42 24-apr-2016 00:11 6392048 3771 1695 24-apr-2016 00:21 24-apr-2016 00:54 6387294 3237 1973 24-apr-2016 01:05 24-apr-2016 01:47 6391392 2506 2550 24-apr-2016 01:58 24-apr-2016 02:49 6389860 2102 3040 24-apr-2016 03:00 24-apr-2016 04:00 5723619 1589 3602 24-apr-2016 04:10 24-apr-2016 05:00 3196078 1073 2980 24-apr-2016 05:00 24-apr-2016 05:10 258522 416 622 24-apr-2016 05:21 24-apr-2016 06:00 1308239 564 2321 24-apr-2016 06:00 24-apr-2016 06:21 1246742 973 1281 24-apr-2016 06:32 24-apr-2016 07:32 2743521 762 3602 24-apr-2016 07:43 24-apr-2016 08:43 3498613 971 3602 24-apr-2016 08:53 24-apr-2016 09:53 4207757 1168 3603 24-apr-2016 10:04 24-apr-2016 11:00 5884053 1764 3335 24-apr-2016 11:00 24-apr-2016 11:04 507668 1960 259 24-apr-2016 11:15 24-apr-2016 12:00 6392338 2371 2696 24-apr-2016 12:10 24-apr-2016 12:38 6387428 3841 1663 24-apr-2016 12:49 24-apr-2016 13:11 6392759 4742 1348 24-apr-2016 13:22 24-apr-2016 13:42 6387570 5244 1218 24-apr-2016 13:53 24-apr-2016 14:12 6397352 5707 1121 24-apr-2016 14:23 24-apr-2016 14:41 6389321 5916 1080 24-apr-2016 14:51 24-apr-2016 15:09 6391483 6070 1053 24-apr-2016 15:20 24-apr-2016 15:37 6385094 6205 1029 24-apr-2016 15:47 24-apr-2016 16:04 6386833 6342 1007
However, don’t think that performance was bad then. You have disks and average single block read in in few milliseconds:
Top 10 Foreground Events by Total Wait Time ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ Total Wait Wait % DB Wait Event Waits Time (sec) Avg(ms) time Class ------------------------------ ----------- ---------- ---------- ------ -------- db file sequential read 74,045 446.5 6.03 71.7 User I/O db file parallel read 3,010 170.2 56.55 27.3 User I/O DB CPU 10.6 1.7 log file sync 3 0 0.79 .0 Commit Disk file operations I/O 5 0 0.14 .0 User I/O utl_file I/O 4 0 0.02 .0 User I/O SQL*Net message to client 6 0 0.00 .0 Network db file async I/O submit 0 0 .0 System I reliable message 0 0 .0 Other db file single write 0 0 .0 User I/O
And the wait event histograms shows that only few I/O calls were above 32 milliseconds at the time of the worst IOPS:
% of Total Waits ----------------------------------------------- Waits 64ms Event to 2s <32ms <64ms <1/8s <1/4s <1/2s <1s =2s ------------------------- ------ ----- ----- ----- ----- ----- ----- ----- ----- Data file init write 12 20.0 20.0 40.0 20.0 Disk file operations I/O 5 93.6 5.1 1.3 control file sequential r 1 100.0 .0 db file async I/O submit 27 96.7 .9 1.1 .7 .4 .1 .1 db file parallel read 1487 50.6 24.0 13.8 8.3 3.4 db file parallel write 853 74.8 10.0 8.4 5.9 .9 .0 db file sequential read 2661 96.5 1.6 1.1 .6 .2 .0
Here is the wait event histogram at microsecond level at the time where the storage head cache hit was probably at its minimum.
06:21:48 SQL> EVENT WAIT_TIME_MICRO WAIT_COUNT WAIT_TIME_FORMAT ------------------------------ --------------- ---------- ------------------------------ db file sequential read 1 0 1 microsecond db file sequential read 2 0 2 microseconds db file sequential read 4 0 4 microseconds db file sequential read 8 0 8 microseconds db file sequential read 16 0 16 microseconds db file sequential read 32 0 32 microseconds db file sequential read 64 0 64 microseconds db file sequential read 128 0 128 microseconds db file sequential read 256 16587 256 microseconds db file sequential read 512 340140 512 microseconds db file sequential read 1024 56516 1 millisecond db file sequential read 2048 5140 2 milliseconds db file sequential read 4096 12525 4 milliseconds db file sequential read 8192 45465 8 milliseconds db file sequential read 16384 53552 16 milliseconds db file sequential read 32768 14962 32 milliseconds db file sequential read 65536 9603 65 milliseconds db file sequential read 131072 4430 131 milliseconds db file sequential read 262144 1198 262 milliseconds db file sequential read 524288 253 524 milliseconds db file sequential read 1048576 3 1 second
Those are the performances that you can expect from a busy load when you don’t hit the storage head cache. It’s not bad on average. This is just what you can expect from disk. You just need to keep in mind that the amazing performances that you can see usually are not guaranteed. It’s very nice to get those performance for development or test environments, but do not rely on it.
Hi Franck,
I think latencies as bad as 65ms to 3000ms are more likely a case where the VM is getting starved for CPU or swapped out perhaps. I can’t imagine any storage device taking that long. Just a thought.
Hi Kevin. Difficult to check that as I had very low CPU usage. I should run SLOB LIO in the same machine as PIO, but I don’t know when this will happen again…
