This was first published on https://blog.dbi-services.com/oda-x6-command-line-and-web-console (2016-08-27)
Republishing here for new followers. The content is related to the the versions available at the publication date
The ODA X6 comes with a new command line (odacli) which replaces oakcli, and with a small web console which can display information about the appliance, the databases and the provisioning jobs. It also has the possibility to create a database, but this is for next blog post. In this post I’ll show which information are displayed once the ODA is installed. The examples here come from ODA X6 version: 12.1.2.7.0

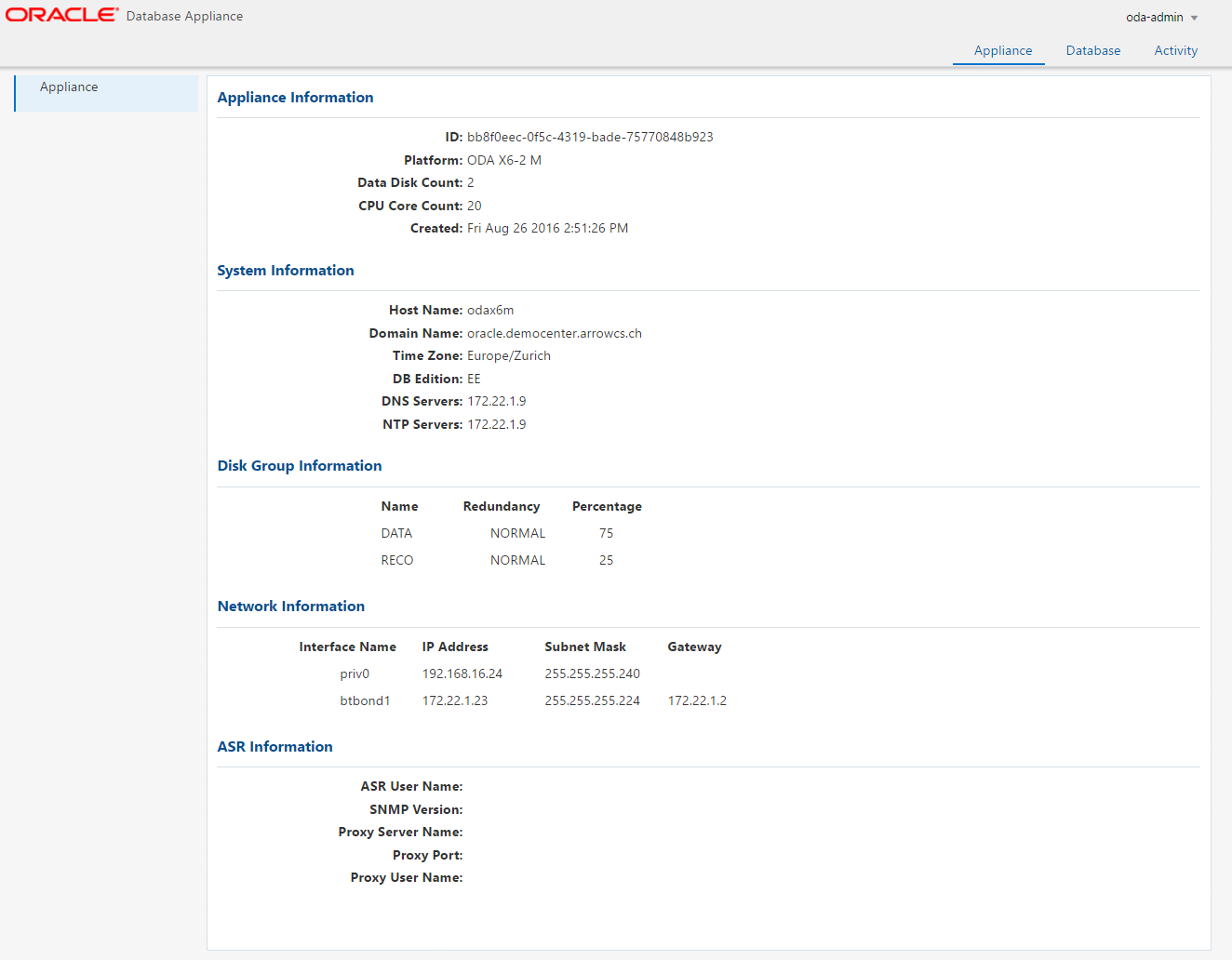

The first screen is about the appliance information, the ones that you define when installed the ODA:
The same information can be displayed from command line with odacli describe-appliance:
[root@odax6m ~]# odacli describe-appliance Appliance Information ---------------------------------------------------------------- ID: bb8f0eec-0f5c-4319-bade-75770848b923 Platform: OdaliteM Data Disk Count: 2 CPU Core Count: 20 Created: Aug 26, 2016 2:51:26 PM System Information ---------------------------------------------------------------- Name: odax6m Domain Name: oracle.democenter.arrowcs.ch Time Zone: Europe/Zurich DB Edition: EE DNS Servers: 172.22.1.9 NTP Servers: 172.22.1.9 Disk Group Information ---------------------------------------------------------------- DG Name Redundancy Percentage ------------------------- ------------------------- ------------ Data Normal 75 Reco Normal 25
An important thing to note here is that the choice between Standard Edition and Enterprise Edition is at appliance level: you cannot mix. There’s also no mention of virtualization because ODA X6 2S and 2M are only bare-metal.
odacli list-networks
[root@odax6m ~]# odacli list-networks ID Name NIC IP Address Subnet Mask Gateway ---------------------------------------- -------------------- ---------- ------------------ ------------------ ------------------ ffcf7d89-8074-4342-9f19-5e72ed695ce7 Private-network priv0 192.168.16.24 255.255.255.240 71a422bc-39d3-483c-b79b-ffe25129dfd2 Public-network btbond1 172.22.1.23 255.255.255.224 172.22.1.2
I’ve no Auto Service Request configured here:
[root@odax6m ~]# odacli describe-asr Aug 27, 2016 8:56:33 PM com.oracle.oda.dcscli.commands.AsrCommand$getAsr run SEVERE: No asr found

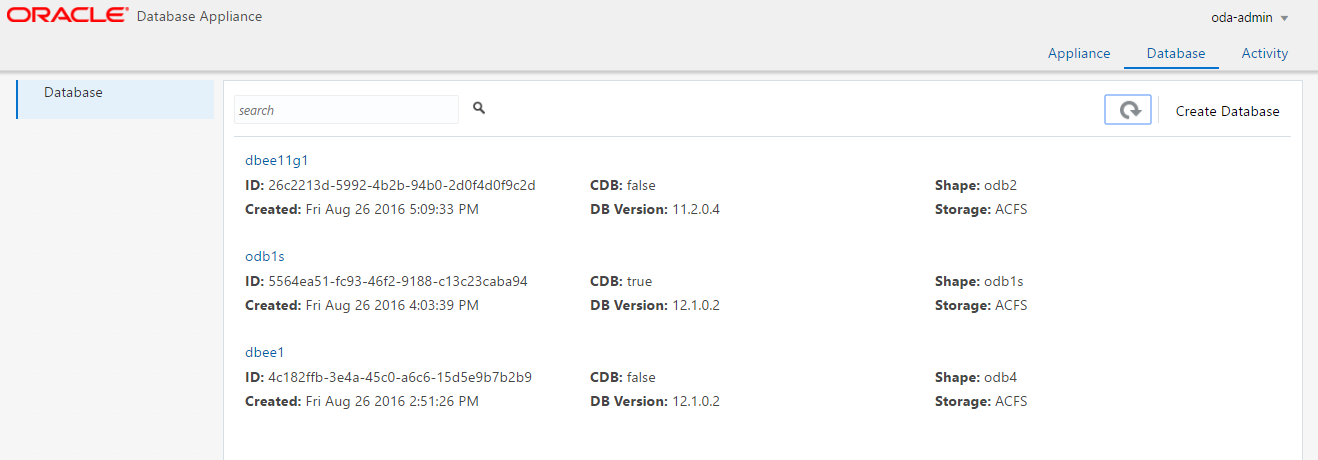

The second screen is about the databases:
From command line you have information about the ORACLE_HOMEs and databases.
[root@odax6m ~]# odacli list-dbhomes ID Name DB Version Home Location ---------------------------------------- -------------------- ---------- --------------------------------------------- 67419075-d1f9-4c2e-85b1-c74430e35120 OraDB12102_home1 12.1.0.2 /u01/app/oracle/product/12.1.0.2/dbhome_1 cf76a90b-f9e3-44b2-9b43-56111c1785e4 OraDB12102_home2 12.1.0.2 /u01/app/oracle/product/12.1.0.2/dbhome_2 adcbe8bf-f26f-4ab7-98a1-0abcd4412305 OraDB11204_home1 11.2.0.4 /u01/app/oracle/product/11.2.0.4/dbhome_1
[root@odax6m ~]# odacli list-databases ID DB Name DB Version CDB Class Shape Storage Status ---------------------------------------- ---------- ---------- ---------- -------- -------- ---------- ---------- 4c182ffb-3e4a-45c0-a6c6-15d5e9b7b2b9 dbee1 12.1.0.2 false OLTP odb4 ACFS Configured 5564ea51-fc93-46f2-9188-c13c23caba94 odb1s 12.1.0.2 true OLTP odb1s ACFS Configured 26c2213d-5992-4b2b-94b0-2d0f4d0f9c2d dbee11g1 11.2.0.4 false OLTP odb2 ACFS Configured

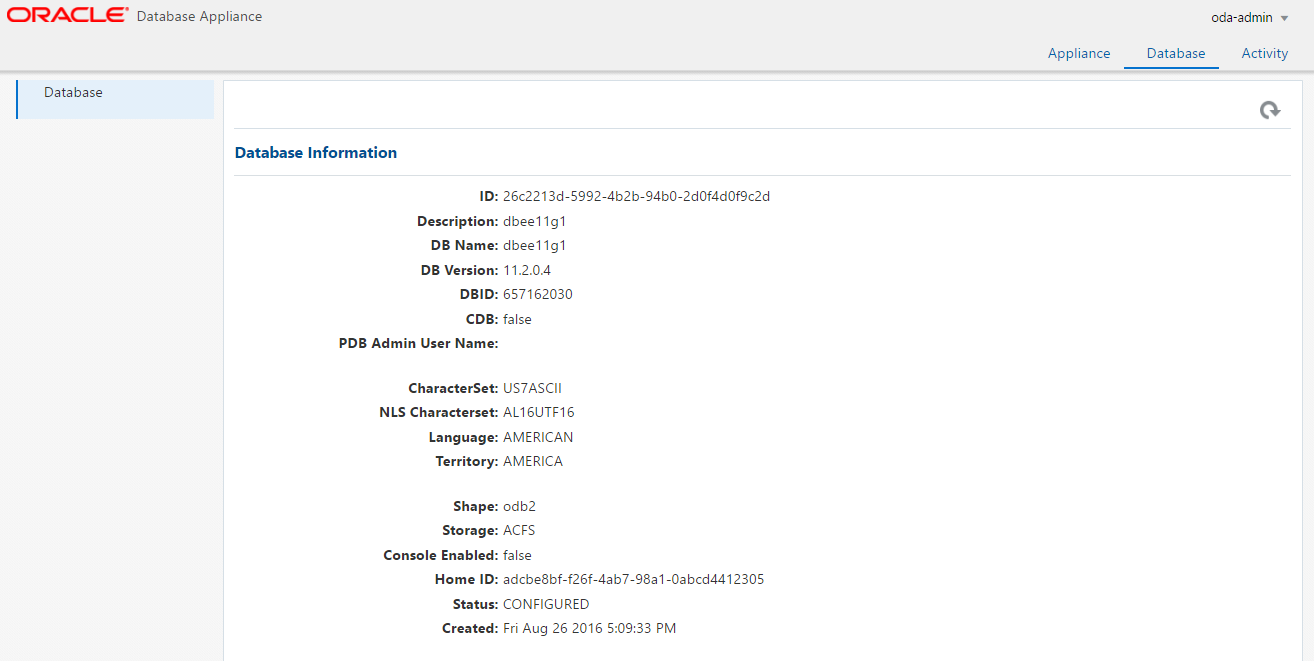

You can get more detail about one database:
[root@odax6m ~]# odacli describe-dbhome -i 67419075-d1f9-4c2e-85b1-c74430e35120 DB Home details ---------------------------------------------------------------- ID: 67419075-d1f9-4c2e-85b1-c74430e35120 Name: OraDB12102_home1 Version: 12.1.0.2 Home Location: /u01/app/oracle/product/12.1.0.2/dbhome_1 Created: Aug 26, 2016 2:51:26 PM
[root@odax6m ~]# odacli describe-database -i 4c182ffb-3e4a-45c0-a6c6-15d5e9b7b2b9 Database details ---------------------------------------------------------------- ID: 4c182ffb-3e4a-45c0-a6c6-15d5e9b7b2b9 Description: dbee1 DB Name: dbee1 DB Version: 12.1.0.2 DBID: 2933563624 CDB: false PDB Name: PDB Admin User Name: Class: OLTP Shape: odb4 Storage: ACFS CharacterSet: DbCharacterSet(characterSet=AL32UTF8, nlsCharacterset=AL16UTF16, dbTerritory=AMERICA, dbLanguage=AMERICAN) Home ID: 67419075-d1f9-4c2e-85b1-c74430e35120 Console Enabled: false Created: Aug 26, 2016 2:51:26 PM

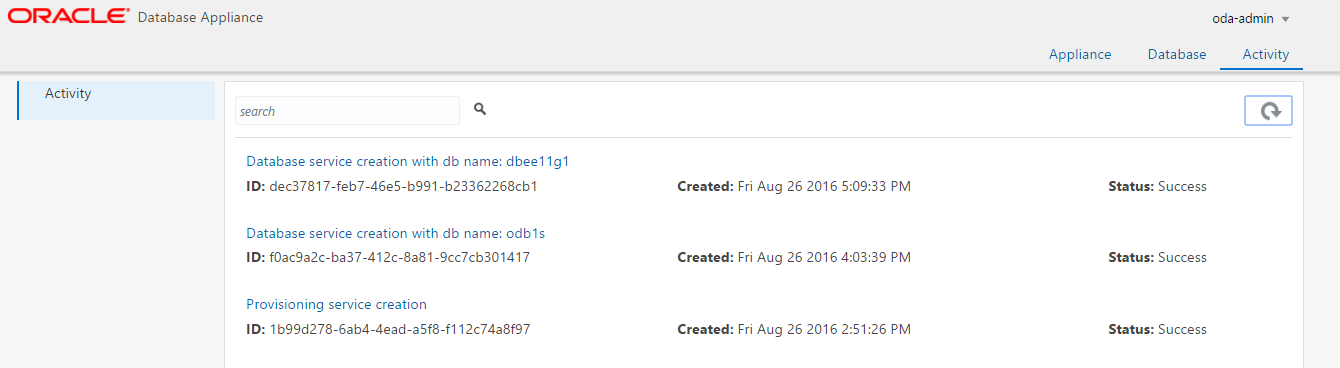

Here is the log of what has been done on the ODA:
[root@odax6m ~]# odacli list-jobs ID Description Created Status ---------------------------------------- ------------------------------ ------------------------- ---------- 1b99d278-6ab4-4ead-a5f8-f112c74a8f97 Provisioning service creation Aug 26, 2016 2:51:26 PM Success f0ac9a2c-ba37-412c-8a81-9cc7cb301417 Database service creation with db name: odb1s Aug 26, 2016 4:03:39 PM Success dec37817-feb7-46e5-b991-b23362268cb1 Database service creation with db name: dbee11g1 Aug 26, 2016 5:09:33 PM Success
And we have more info about the steps executed for one job:
Same in command line:
[root@odax6m ~]# odacli describe-job -i 1b99d278-6ab4-4ead-a5f8-f112c74a8f97 Job details ---------------------------------------------------------------- ID: 1b99d278-6ab4-4ead-a5f8-f112c74a8f97 Description: Provisioning service creation Status: Success Created: 26.08.2016 14:51:26 Message: Task Name Start Time End Time Status ---------------------------------------- ------------------------- ------------------------- ---------- Setting up Network Aug 26, 2016 2:51:27 PM Aug 26, 2016 2:51:27 PM Success Creating group :asmdba Aug 26, 2016 2:51:38 PM Aug 26, 2016 2:51:38 PM Success Creating group :asmoper Aug 26, 2016 2:51:38 PM Aug 26, 2016 2:51:38 PM Success Creating group :asmadmin Aug 26, 2016 2:51:38 PM Aug 26, 2016 2:51:38 PM Success Creating group :dba Aug 26, 2016 2:51:38 PM Aug 26, 2016 2:51:38 PM Success Creating group :dbaoper Aug 26, 2016 2:51:38 PM Aug 26, 2016 2:51:38 PM Success Creating group :oinstall Aug 26, 2016 2:51:38 PM Aug 26, 2016 2:51:38 PM Success Creating user :grid Aug 26, 2016 2:51:38 PM Aug 26, 2016 2:51:38 PM Success Creating user :oracle Aug 26, 2016 2:51:38 PM Aug 26, 2016 2:51:38 PM Success Setting up ssh equivalance Aug 26, 2016 2:51:39 PM Aug 26, 2016 2:51:39 PM Success Gi Home creation Aug 26, 2016 2:54:49 PM Aug 26, 2016 2:57:54 PM Success Creating GI home directories Aug 26, 2016 2:54:49 PM Aug 26, 2016 2:54:49 PM Success Cloning Gi home Aug 26, 2016 2:54:49 PM Aug 26, 2016 2:57:54 PM Success GI stack creation Aug 26, 2016 2:57:54 PM Aug 26, 2016 3:08:44 PM Success Configuring GI Aug 26, 2016 2:57:54 PM Aug 26, 2016 2:58:21 PM Success Running GI root scripts Aug 26, 2016 2:58:21 PM Aug 26, 2016 3:05:03 PM Success Running GI config assistants Aug 26, 2016 3:05:03 PM Aug 26, 2016 3:05:34 PM Success Creating RECO disk group Aug 26, 2016 3:10:02 PM Aug 26, 2016 3:10:16 PM Success Creating volume reco Aug 26, 2016 3:10:16 PM Aug 26, 2016 3:10:26 PM Success Creating volume datdbee1 Aug 26, 2016 3:10:26 PM Aug 26, 2016 3:10:35 PM Success Creating ACFS filesystem for RECO Aug 26, 2016 3:10:35 PM Aug 26, 2016 3:10:42 PM Success Creating ACFS filesystem for DATA Aug 26, 2016 3:10:42 PM Aug 26, 2016 3:10:49 PM Success Db Home creation Aug 26, 2016 3:10:49 PM Aug 26, 2016 3:13:40 PM Success Creating DbHome Directory Aug 26, 2016 3:10:49 PM Aug 26, 2016 3:10:49 PM Success Extract DB clones Aug 26, 2016 3:10:49 PM Aug 26, 2016 3:12:29 PM Success Enable DB options Aug 26, 2016 3:12:29 PM Aug 26, 2016 3:12:38 PM Success Clone Db home Aug 26, 2016 3:12:38 PM Aug 26, 2016 3:13:37 PM Success Run Root DB scripts Aug 26, 2016 3:13:37 PM Aug 26, 2016 3:13:37 PM Success Database Service creation Aug 26, 2016 3:13:40 PM Aug 26, 2016 3:19:43 PM Success Database Creation Aug 26, 2016 3:13:40 PM Aug 26, 2016 3:17:58 PM Success Running DataPatch Aug 26, 2016 3:18:33 PM Aug 26, 2016 3:19:43 PM Success create Users tablespace Aug 26, 2016 3:19:43 PM Aug 26, 2016 3:19:46 PM Success
Yes, this is the ODA installation. Half an hour to setup the OS, install Grid Infrastructure, setup the storage and create a first database.
Those that all the screens are not refreshed automatically even when you navigate through them. Don’t forget the ‘Refresh’ button (circular arrow) on top-right.
You can also build your own interface from the JSON format:
[root@odax6m ~]# odacli list-jobs -j [ { "jobId" : "1b99d278-6ab4-4ead-a5f8-f112c74a8f97", "status" : "Success", "message" : null, "createTimestamp" : 1472215886601, "description" : "Provisioning service creation" }, { "jobId" : "f0ac9a2c-ba37-412c-8a81-9cc7cb301417", "status" : "Success", "message" : null, "createTimestamp" : 1472220219016, "description" : "Database service creation with db name: odb1s" }, { "jobId" : "dec37817-feb7-46e5-b991-b23362268cb1", "status" : "Success", "message" : null, "createTimestamp" : 1472224173747, "description" : "Database service creation with db name: dbee11g1" } ]
ODA is for easy and fast provisioning and the GUI that was missing is finally there. Of course, it looks very simple, but that’s the goal of the appliance: setup quickly a standardized environment. ODA X6-2S is cheap and has good performance for small databases. You may find equivalent hardware, but can you build and install a stable hardware, OS and database in 30 minutes?
