This was first published on https://blog.dbi-services.com/large-pages-on-windows (2016-06-16)
Republishing here for new followers. The content is related to the the versions available at the publication date
In a previous post I’ve installed Oracle on a Windows Server Core. Now I’ll enable large pages.
To let Oracle use Large Pages on Windows, you need to define a registry string ORA_LPENABLE=1. This will enable large pages for all instance so it’s probably better to do it at instance level with ORA_SID_LPENABLE, especially if you have an ASM instance on your server. Note that large pages is a recommandation for an database server but if you have other applications that use lot of memory you may lack of memory because of fragmentation.
Stopping the service:
C:\cygwin64\bin>net stop OracleServiceCDB The OracleServiceCDB service is stopping. The OracleServiceCDB service was stopped successfully.
Showing the registry:
C:\cygwin64\bin>reg query HKLM\Software\Oracle\Key_OraDB12Home1 HKEY_LOCAL_MACHINE\Software\Oracle\Key_OraDB12Home1 ORACLE_HOME REG_SZ C:\app\oracle\product\12.1.0\EE12101 ORACLE_HOME_NAME REG_SZ OraDB12Home1 ORACLE_GROUP_NAME REG_SZ Oracle - OraDB12Home1 NLS_LANG REG_SZ AMERICAN_AMERICA.WE8MSWIN1252 ORACLE_BUNDLE_NAME REG_SZ Enterprise OLEDB REG_SZ C:\app\oracle\product\12.1.0\EE12101\oledb\mesg ORACLE_HOME_TYPE REG_SZ 1 ORACLE_SVCUSER REG_SZ oracle ORACLE_SVCUSER_PWDREQ REG_SZ 1 ORACLE_BASE REG_SZ C:\app\oracle MSHELP_TOOLS REG_SZ C:\app\oracle\product\12.1.0\EE12101\MSHELP ORACLE_HOME_KEY REG_SZ SOFTWARE\ORACLE\KEY_OraDB12Home1 SQLPATH REG_SZ C:\app\oracle\product\12.1.0\EE12101\dbs RDBMS_CONTROL REG_SZ C:\app\oracle\product\12.1.0\EE12101\DATABASE RDBMS_ARCHIVE REG_SZ C:\app\oracle\product\12.1.0\EE12101\DATABASE\ARCHIVE ORA_CDB_AUTOSTART REG_EXPAND_SZ TRUE ORA_CDB_SHUTDOWN REG_EXPAND_SZ TRUE ORA_CDB_SHUTDOWNTYPE REG_EXPAND_SZ immediate ORA_CDB_SHUTDOWN_TIMEOUT REG_EXPAND_SZ 90 ORACLE_SID REG_SZ CDB ORA_LPENABLE REG_SZ 1 HKEY_LOCAL_MACHINE\Software\Oracle\Key_OraDB12Home1\ODE HKEY_LOCAL_MACHINE\Software\Oracle\Key_OraDB12Home1\OLEDB
Starting the service:
C:\cygwin64\bin>net start OracleServiceCDB The OracleServiceCDB service is starting... The OracleServiceCDB service was started successfully.
and tailing the alert.log:
C:\cygwin64\bin>adrci exec="set home cdb ; show alert -tail 5" 2016-06-13 12:51:22.709000 -07:00 Archiving is disabled 2016-06-13 12:51:32.153000 -07:00 Instance shutdown complete 2016-06-13 12:51:38.179000 -07:00 Starting ORACLE instance (normal) (OS id: 1620) CLI notifier numLatches:3 maxDescs:519 Large page enabled. Mode is : 1 Large page size : 2097152 Large page request size : 16777216 2016-06-13 13:00:38.599000 -07:00 Starting ORACLE instance (normal) (OS id: 1760) CLI notifier numLatches:3 maxDescs:519 Large page enabled. Mode is : 1 Large page size : 2097152 Large page request size : 16777216 2016-06-13 13:01:37.707000 -07:00 Starting ORACLE instance (normal) (OS id: 1888) CLI notifier numLatches:3 maxDescs:519 Large page enabled. Mode is : 1 Large page size : 2097152 Large page request size : 16777216

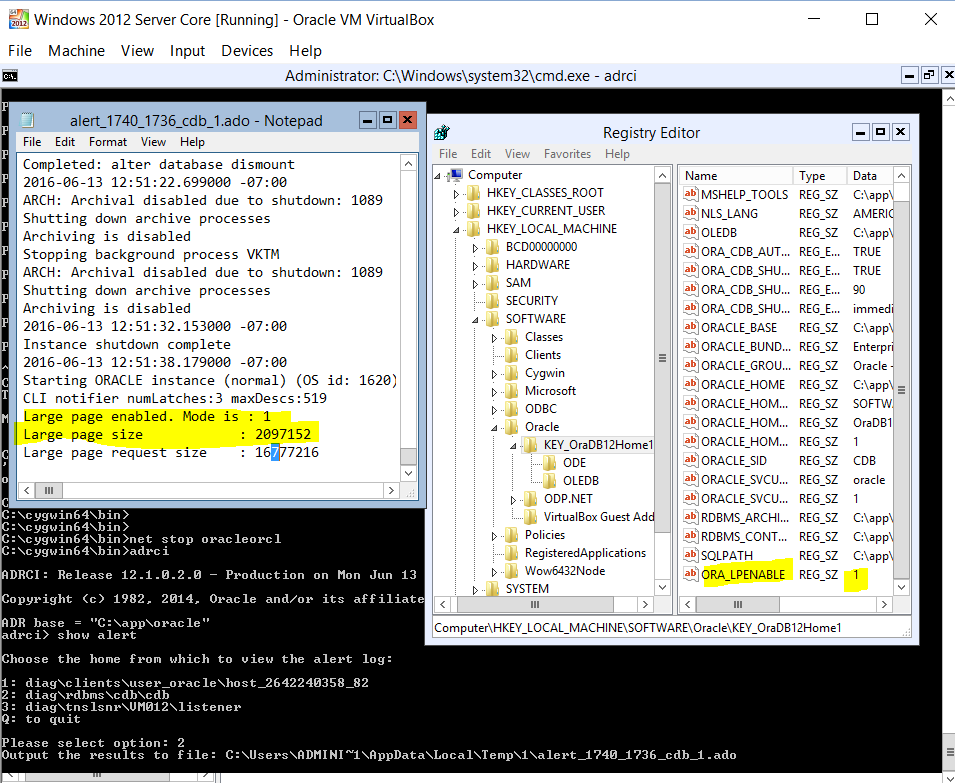

You can see my registry entries on the right and the alert.log on the left.
But this is not sufficient to start the instance:
In 12c you can, and you should, run the Oracle Database instance as another user than the system administrator. Large pages must be locked in physical memory (and that’s one good reason to use them) but by default non administrators do not have this privilege.
You have to allow it with the Local Goup Policy Editor. Unfortunately, doing that in a Windows Server Core seems to be very difficult because gpedit-msc is not there.
At that point, my enthousiasm for Windows Core ended and I installed Windows Server GUI.
Now I can startup. Here is the alert.log:
Starting ORACLE instance (normal) (OS id: 2620) Wed Jun 15 09:53:12 2016 CLI notifier numLatches:7 maxDescs:519 Wed Jun 15 09:53:12 2016 Large page enabled. Mode is : 1 Wed Jun 15 09:53:12 2016 Large page size : 2097152 Large page request size : 16777216 Wed Jun 15 09:53:12 2016 Allocated Large Pages memory of size : 14680064 Wed Jun 15 09:53:12 2016 Allocated Large Pages memory of size : 1660944384 LICENSE_MAX_SESSION = 0 LICENSE_SESSIONS_WARNING = 0 Initial number of CPU is 4 Number of processor cores in the system is 4 Number of processor sockets in the system is 1 Picked latch-free SCN scheme 3 Using LOG_ARCHIVE_DEST_1 parameter default value as USE_DB_RECOVERY_FILE_DEST Autotune of undo retention is turned on. IMODE=BR ILAT =51 LICENSE_MAX_USERS = 0 SYS auditing is enabled NOTE: remote asm mode is local (mode 0x1; from cluster type) NOTE: Using default ASM root directory ASM Oracle Database 12c Enterprise Edition Release 12.1.0.2.0 - 64bit Production With the Partitioning, OLAP, Advanced Analytics and Real Application Testing options. Windows NT Version V6.2 CPU : 4 - type 8664, 4 Physical Cores Process Affinity : 0x0x0000000000000000 Memory (Avail/Total): Ph:5718M/8191M, Ph+PgF:7735M/10111M
And yes, I am in Automatic Memory Management (AMM) where size of PGA and SGA is dynamically resized by Oracle within MEMORY_TARGET:
Using parameter settings in server-side spfile C:\APP\ORACLE\PRODUCT\12.1.0\DBHOME_1\DATABASE\SPFILECDB.ORA System parameters with non-default values: processes = 300 use_large_pages = "ONLY" memory_target = 1600M control_files = "C:\APP\ORACLE\ORADATA\CDB\CONTROL01.CTL" control_files = "C:\APP\ORACLE\FAST_RECOVERY_AREA\CDB\CONTROL02.CTL" db_block_size = 8192 compatible = "12.1.0.2.0" db_recovery_file_dest = "C:\app\oracle\fast_recovery_area" db_recovery_file_dest_size= 500M _catalog_foreign_restore = FALSE undo_tablespace = "UNDOTBS1" remote_login_passwordfile= "EXCLUSIVE" db_domain = "" dispatchers = "(PROTOCOL=TCP) (SERVICE=CDBXDB)" audit_file_dest = "C:\APP\ORACLE\ADMIN\CDB\ADUMP" audit_trail = "DB" db_name = "CDB" open_cursors = 300 diagnostic_dest = "C:\APP\ORACLE" enable_pluggable_database= TRUE
On Windows, all Oracle “processes” run as threads of the same Windows process, I don’t see any reason to advise against AMM there.
Note that I don’t see any reason to recommend it either…
My Oracle Support engineer has confirmed that there is no problem to use AMM with large pages on windows systems. Doc ID 422844.1 -“Using Large Memory Pages on 64-Bit Windows Systems” confirms that large pages are used only for SGA, not PGA, so only SGA is locked in memory and 2MB pages. However, I think it’s a good idea to set SGA_TARGET to get a minimum that keeps allocated because frequent resizing may lead to fragmentation. And if you want to allocate small pages when large pages are not available, you can set ORA_LPENABLE=2 since 12c.
My tests (see http://blog.dbi-services.com/large-pages-and-memory_target-on-windows/) show that it’s not a good idea to mix AMM and Large Pages even on Windows, and this is why I deleted the previous update. Oracle developers have confirmed that we should avoid AMM with Large Pages.
